　 Lifting table - Model SN



			Extension of the AVL range for 3000, 4000 and 5000 daN capacities. The standard SN lifting tables are conceived to carry decentred loads.

　　Building


	Mechano-welded platform with plain or chequered steel plate. Scissors device in heavy section flat steel plate for all models up to 4000 daN and in tubular sections for the tables of 5000 daN capacity. Single acting cylinder with chrome steel rod and an end of stroke mechanical stop. Articulations, bearings and rollers without maintenance, forecasted to execute a maximum of 20 cycles per hour, 8 hours a day, 5 days a week. Hydro electrical power unit placed inside or outside the lifting table. Electric control chest placed outside, feeding voltage 3phased 230 or 400 Volts 50 Hz, connected to the lifting table with 3 meters cable. An "up-down" and "emergency stop" 24 Volts hand push-button control box connected to the electric control chest with 3 meters cable. Adjustable safety travel limit switches .... mechanical type plastic box IP 65. Electrical cables model FR-N05-VV5-F. Colour : BLUE RAL 5014.

　　Security


	Mechano-welded platform with plain or chequered steel plate. Scissors device in heavy section flat steel plate for all models up to 4000 daN and in tubular sections for the tables of 5000 daN capacity. Single acting cylinder with chrome steel rod and an end of stroke mechanical stop. Articulations, bearings and rollers without maintenance, forecasted to execute a maximum of 20 cycles per hour, 8 hours a day, 5 days a week. Hydro electrical power unit placed inside or outside the lifting table. Electric control chest placed outside, feeding voltage 3phased 230 or 400 Volts 50 Hz, connected to the lifting table with 3 meters cable. An "up-down" and "emergency stop" 24 Volts hand push-button control box connected to the electric control chest with 3 meters cable. Adjustable safety travel limit switches .... mechanical type plastic box IP 65. Electrical cables model FR-N05-VV5-F. Colour : BLUE RAL 5014.

　　Main options


	Fix, removable or portable standardize safety handrails. Bridging plate with manual or hydraulic raising to facilitate the transfer of the loads in vehicles. Retractable plinth and stop (drop proof security for the lifting trucks). Reinforced platform for travelling overload in low position. For side protection of the scissors and to forbid access under the lifting plate: safety removable safety skirts with bellows or steel net, curtains fabric or metal on spring winder. Manually or motorized swivelling, tilting, telescopic or sliding platform. Special articulations for uninterrupted working at high rates. Up – Down controls by pedal. Unlike feeding and control voltage. Mobile version on ground or rails with free or motorized displacement. Special treatment for aggressive surroundings (sanding and suitable painting, , plating, hot dip galvanization). Free or motorized rollers. Constant levelling device by photo-electric cell for loading and unloading of materials in plates (paperboard, wood, plaster, etc..). Specific electric components : explosion-proof, tropicalized, programmable automaton, etc... Special models of lifting tables and equipment, on request.

　　Atlas extras


	en

　　　Model EB

Ref.	Load (daN)	Length (mm)	Width (mm)	L.P. (mm)	H.P. (mm)	Stroke (mm)	Time (sec.)	Power (kw)	Weight (kg)
SN30-1612	3000	1600	1200	300	1300	1000	26	3.50	930
SN30-1616	3000	1600	1600	300	1300	1000	26	3.50	1050
SN30-2012	3000	2000	1200	370	1670	1300	31	3.50	1080
SN30-2016	3000	2000	1600	370	1670	1300	31	3.50	1230
SN30-2020	3000	2000	2000	370	1670	1300	31	3.50	1350
SN30-2512	3000	2500	1200	395	2045	1650	47	3.50	1370
SN30-2516	3000	2500	1600	395	2045	1650	47	3.50	1530
SN30-2520	3000	2500	2000	395	2045	1650	47	3.50	1680
SN30-2524	3000	2500	2400	395	2045	1650	47	3.50	1880
SN30-3016	3000	3000	1600	450	2250	1800	43	4.00	1900
SN30-3020	3000	3000	2000	450	2250	1800	43	4.00	2100
SN30-3024	3000	3000	2400	450	2250	1800	43	4.00	2330
SN30-3030	3000	3000	3000	450	2250	1800	43	4.00	2420
SN30-3520	3000	3500	2000	450	2250	1800	43	4.00	2210
SN30-3524	3000	3500	2400	450	2250	1800	43	4.00	2460
SN30-3530	3000	3500	3000	450	2250	1800	43	4.00	2570
SN30-4020	3000	4000	2000	450	2250	1800	43	4.00	2310
SN30-4024	3000	4000	2400	450	2250	1800	43	4.00	2590
SN30-4030	3000	4000	3000	450	2250	1800	43	4.00	2710
SN40-1612	4000	1600	1200	300	1300	1000	31	3.50	1030
SN40-1616	4000	1600	1600	300	1300	1000	31	3.50	1150
SN40-2012	4000	2000	1200	370	1670	1300	38	3.50	1265
SN40-2016	4000	2000	1600	370	1670	1300	38	3.50	1420
SN40-2020	4000	2000	2000	370	1670	1300	38	3.50	1540
SN40-2512	4000	2500	1200	395	2045	1650	41	4.00	1620
SN40-2516	4000	2500	1600	395	2045	1650	41	4.00	1780
SN40-2520	4000	2500	2000	395	2045	1650	41	4.00	1930
SN40-2524	4000	2500	2400	395	2045	1650	41	4.00	2130
SN40-3016	4000	3000	1600	450	2250	1800	52	4.00	2240
SN40-3020	4000	3000	2000	450	2250	1800	52	4.00	2400
SN40-3024	4000	3000	2400	450	2250	1800	52	4.00	2680
SN40-3030	4000	3000	3000	450	2250	1800	52	4.00	2720
SN40-3520	4000	3500	2000	450	2250	1800	52	4.00	2555
SN40-3524	4000	3500	2400	450	2250	1800	52	4.00	2810
SN40-3530	4000	3500	3000	450	2250	1800	52	4.00	2920
SN40-4020	4000	4000	2000	450	2250	1800	52	4.00	2660
SN40-4024	4000	4000	2400	450	2250	1800	52	4.00	2940
SN40-4030	4000	4000	3000	450	2250	1800	52	4.00	3060
SN50-2516	5000	2500	1600	450	2050	1600	40	4.00	1910
SN50-2520	5000	2500	2000	450	2050	1600	40	4.00	2100
SN50-3016	5000	3000	1600	600	2300	1700	52	4.00	2200
SN50-3020	5000	3000	2000	600	2300	1700	52	4.00	2400
SN50-3524	5000	3500	2400	600	2300	1700	52	4.00	2830
SN50-4024	5000	4000	2400	600	2300	1700	52	4.00	2950
SN50-4030	5000	4000	3000	600	2300	1700	52	4.00	3220

Comercial contact

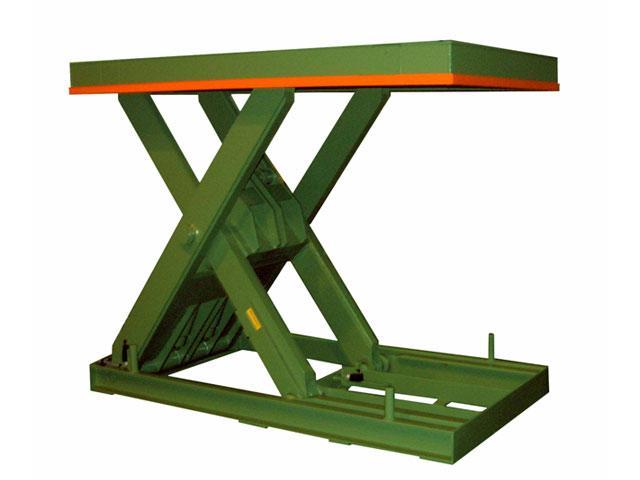

Option : standardize safety handrail

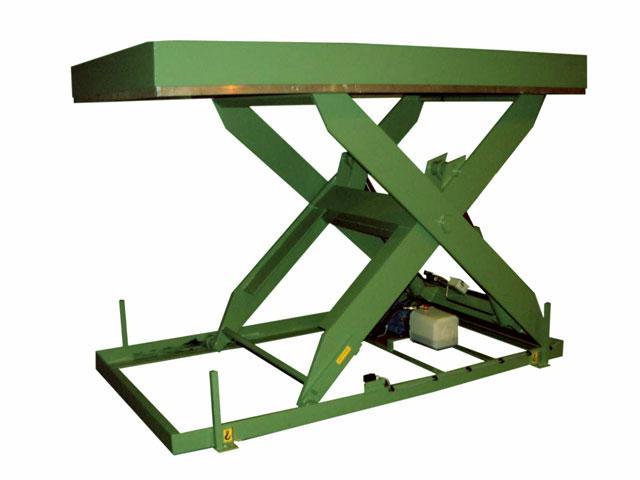

SN3000 in high position showing the incorporated hydraulic power unit

SN5000 in high position

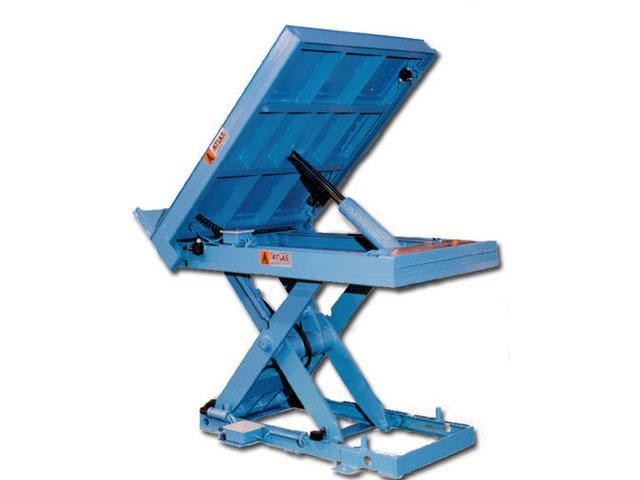

Option : Titling platform
