Lifting table - Model EB |
|
|
|
| |
 |
|
|
| Super low, these lifting tables are usually always used laid on the floor at load and unloading stations. Their very low position makes them available to the manual transpallets or directly on the models EBU or EBE or with an access ramp on the model EB. |
|
| ¡¡¡¡Building
|
|
| |
- Heavy plain steel plate on all models.
- Scissors device in plain steel plate and solid flat.
- Single acting cylinder with chrome steel rod and an end of stroke mechanical stop.
- Articulations, bearings and rollers without maintenance, forecasted to execute a maximum of 10 cycles per hour, 8 hours a day, 5 days a week.
- Hydro electrical power unit and control chest on a compact support connected with 3 meters of hoses and cables to the lifting table.
- Feeding voltage : 3phased 230 / 400 Volts 50 Hz.
- An ¡°up-down¡± and ¡°emergency stop¡± 24 Volts hand push-button control box connected to the control chest with 3 meters cable.
- Electrical cables model FR-N05-VV5-F.
- Colour : BLUE RAL 5014.
|
|
|
|
| ¡¡¡¡Security
|
|
| |
Hydraulic security through a hydraulic lock valve to secure the lifting table position in the event of a hose failure.
Pressure limit valve set in the factory, to prohibit a load higher than 1,1 time the lifting table rated capacity.
Safety frame under the platform perimeter to stop the lowering in case of obstacles.
Hand push button control up-down and emergency stop : 24 Volts.
Safety legs keep the lifting table at a settled level for maintenance.
Before forwarding, each lifting table is checked and undergoes the regulation tests.
Conceiving and building of these lifting tables comply with the rules of manufacture and safety requirements imposed by the European Standards and regulations.
The EC of Conformity is set on all these delivered models. |
|
|
|
| ¡¡¡¡Main options |
|
| |
Access ramp for the EB model.
Up ¨C Down controls by pedal.
Unlike feeding and control voltage.
Side protection bellows protection for all models.
Removable draw bar and retractable wheels for light displacement.
Special treatment for aggressive surroundings (sanding and suitable painting, , plating, hot dip galvanization).
Manually swivelling platform.
Free rollers.
Tilting platform.
Special models of lifting tables on request. |
|
|
|
|
| |
|
Ref. |
Load
(daN) |
Length
(mm) |
Width
(mm) |
L.P.
(mm) |
H.P.
(mm) |
Stroke
(mm) |
Time
(sec.) |
Power
(kw) |
Weight
(kg) |
|
EB05-1410 |
500 |
1400 |
1000 |
85 |
900 |
815 |
20 |
1.10 |
315 |
|
EB10-1410 |
1000 |
1400 |
1000 |
85 |
900 |
815 |
20 |
1.10 |
315 |
|
EB15-1410 |
1500 |
1400 |
1000 |
85 |
900 |
815 |
20 |
1.10 |
315 |
|
EBE05-1513 |
500 |
1500 |
1300 |
85 |
900 |
815 |
20 |
1.10 |
330 |
|
EBE10-1513 |
1000 |
1500 |
1300 |
85 |
900 |
815 |
20 |
1.10 |
330 |
|
EBE15-1513 |
1500 |
1500 |
1300 |
85 |
900 |
815 |
20 |
1.10 |
330 |
|
EBU05-1513 |
500 |
1500 |
1300 |
85 |
900 |
815 |
20 |
1.10 |
325 |
|
EBU10-1513 |
1000 |
1500 |
1300 |
85 |
900 |
815 |
20 |
1.10 |
325 |
|
EBU15-1513 |
1500 |
1500 |
1300 |
85 |
900 |
815 |
20 |
1.10 |
325 |
|
Caption
L¨¦gende : Load : Maxi lifting capacity in daN Width. : Platform width in mm L.P. : Collapsed height in mm H.P. : High position en mm Power. : Power in Kw Time : Lifting time for a total stroke (H.P. - L.P.) in sec. Weight. : Dead weight in kg
|
|
|
|
|
|
| |
| EB in high position with bellows, hydro electrical power unit and control chest on a compact support, and control pedal |
|
|
| |
| EB in collapsed height with hydro electrical power unit and control chest on a compact support, and push button box |
|
|
| |

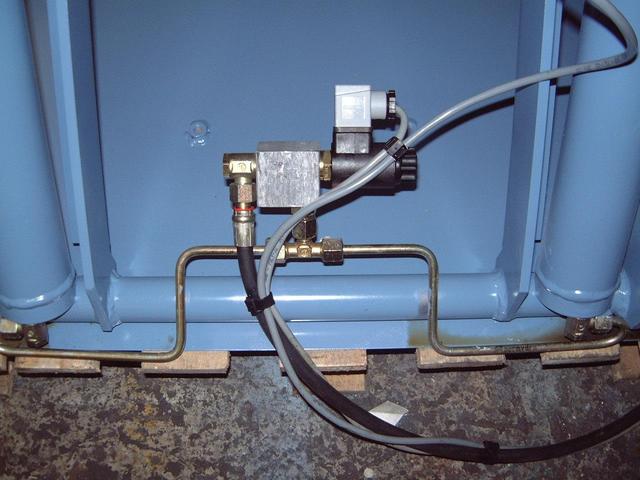

| Assembly detail - piping of the hydraulic lock |
|
|
| |

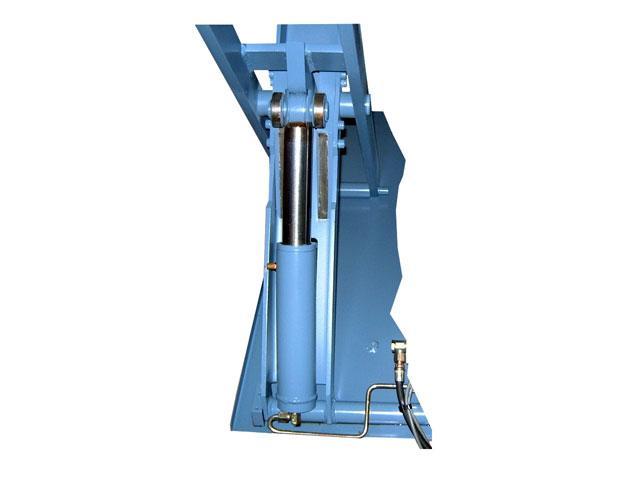

| Complete assembly of the cylinder with rollers in end of rod and rails + cam on lifting arms and piping |
|
|
|
